API Key Authentication for MCP

By default, a DreamFactory MCP endpoint authenticates clients with OAuth 2.0: the client completes a browser login, obtains a token, and every request carries an Authorization: Bearer header. From DreamFactory 7.7.1, each MCP service can additionally accept a static DreamFactory API key. The setting is a per-service opt-in and is off by default — services that never enable it behave exactly as before.

API keys suit headless and server-to-server MCP clients that cannot complete a browser OAuth flow: CI jobs, backend agents, scheduled scripts, or plain curl.

Quick Reference​

PropertyValue
SettingAllow API Key Authentication toggle in Advanced Options (allow_api_key_auth)
DefaultOff — OAuth remains the only mechanism until an admin enables it
HeaderX-DreamFactory-API-Key
KeyA standard DreamFactory app API key (64-character hex)
RequirementsThe key's app must be active and have a role assigned
Access scopeThe app's role, intersected with the service's Exposed Services
PrecedenceAn Authorization: Bearer header always wins and takes the OAuth path
Optional layeringX-DreamFactory-Session-Token adds user identity on top of the key

Enabling it​

Log in as an administrator, open the AI tab, click MCP, and select your MCP service. Under Advanced Options, switch on Allow API Key Authentication and save:

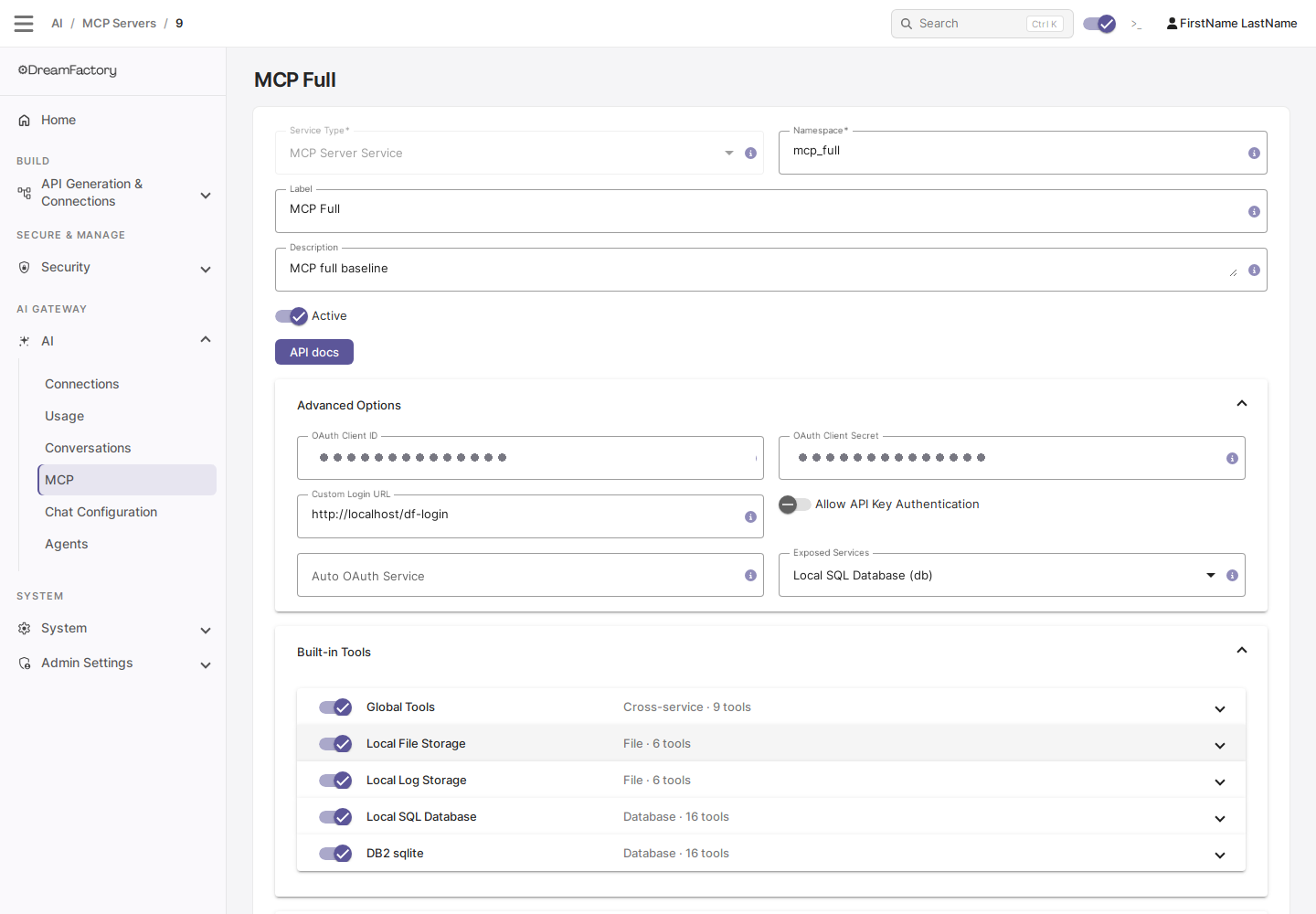

MCP service Advanced Options showing the Allow API Key Authentication toggle next to the Custom Login URL field, with the Exposed Services selection showing Local SQL Database and the top of the Built-in Tools section below

The key you hand to clients is an ordinary DreamFactory application API key. For MCP the key's app must be active and must have a role assigned — keys whose app has no role are rejected, because that role is what scopes every tool call.

Making requests​

Send the key in the X-DreamFactory-API-Key header on every request. Initialize as usual:

curl -i -X POST https://your-dreamfactory-host/mcp/{service-name} \
  -H "Content-Type: application/json" \
  -H "X-DreamFactory-API-Key: YOUR_APP_API_KEY" \
  -d '{
    "jsonrpc": "2.0",
    "id": 1,
    "method": "initialize",
    "params": {
      "protocolVersion": "2025-03-26",
      "capabilities": {},
      "clientInfo": {"name": "my-client", "version": "1.0.0"}
    }
  }'

The response includes an MCP-Session-Id header. Include it — together with the API key header — on subsequent calls:

curl -X POST https://your-dreamfactory-host/mcp/{service-name} \
  -H "Content-Type: application/json" \
  -H "MCP-Session-Id: YOUR_SESSION_ID" \
  -H "X-DreamFactory-API-Key: YOUR_APP_API_KEY" \
  -d '{
    "jsonrpc": "2.0",
    "id": 2,
    "method": "tools/call",
    "params": {"name": "list_apis", "arguments": {}}
  }'

How access is scoped​

  • Key-only requests run under the key app's role — the same way API-key-only calls to the REST API are authorized. The tool catalog the session sees is the intersection of that role's service access and the MCP service's Exposed Services list.
  • Bearer always wins. A request carrying an Authorization: Bearer header goes through the unchanged OAuth path, regardless of any API-key headers it also carries.
  • With the toggle off (the default), requests without a Bearer token receive 401 with OAuth discovery info — exactly the behavior on instances prior to 7.7.1.

Layering a session token​

Alongside the key, a client may also send a DreamFactory session JWT in the X-DreamFactory-Session-Token header. The request then runs with that user's identity and role mapping on top of the app context — user-specific RBAC wins over the bare app role, matching how the combination behaves against the REST API. An invalid or expired session token is rejected rather than silently ignored.

Security guidance​

Treat app keys as secrets

Once the toggle is on, anyone holding the app's API key can open MCP sessions with that app's role — there is no interactive login in front of it. Distribute keys like passwords, keep them out of source control, and prefer OAuth for interactive clients.

  • Scope tightly. Give the app a least-privilege role, and keep the MCP service's Exposed Services list to the backends the key actually needs.
  • Revoke deliberately. To cut off access: refresh the app's API key, unassign its role, deactivate the app, or switch Allow API Key Authentication back off for the service.
  • Keys stay out of the logs. Keys are format-checked before any lookup, and the key value is not written to DreamFactory's log at the default log level — the auth-success line (visible only at LOG_LEVEL=debug) records the app, not the key.
  • Calls are audited. API-key-authenticated tool calls are recorded in the mcp_request_log audit table like OAuth calls, attributed to the key's app and role (with no OAuth client).
note

The toggle also exists on System API MCP Server (system_mcp) services — the config model is shared. Such an endpoint stays OAuth-only until an admin opts it in, and a key-authenticated session's role gates System API calls exactly as it gates them through the REST API.
